Fiber Cement Explosion Proof Panel – Product Details
Danae fiber cement explosion proof panels are professionally engineered for blast-resistant walls, fireproof partitions and industrial safety protection systems. They are widely installed in chemical plants, oil refineries, power stations and all kinds of hazardous material facilities.
Main uses of Fiber Cement Explosion Proof Panel for Industrial Protection
Chemical Plant Explosion Proof Walls
Oil & Gas Facility Safety Partition
Power Plant Control Room Protection
Petrochemical Equipment
Industrial Fireproof Ceiling Systems
Explosion Resistant Buildings
Product Structure & Features ：
The complete panel system consists of steel keels, fiber cement composite steel plates and rock wool insulation.

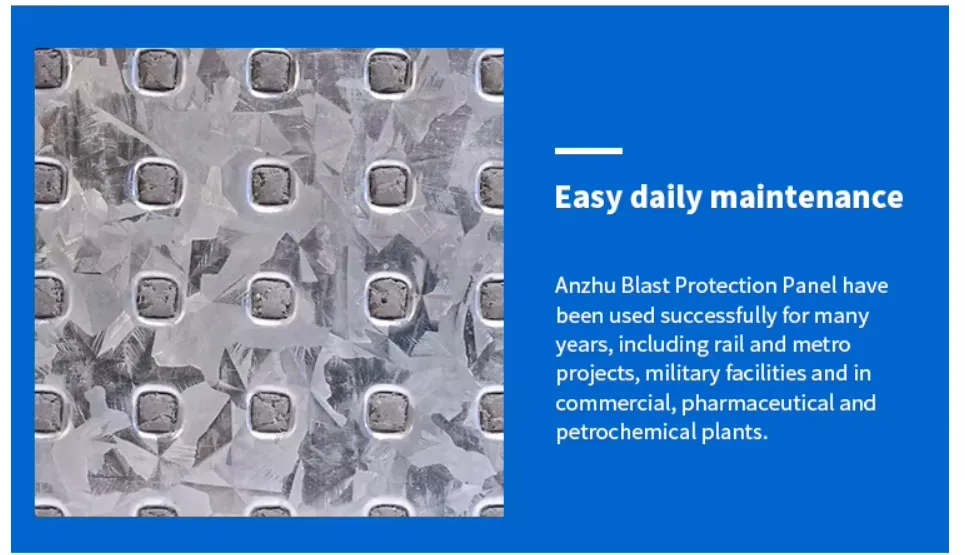

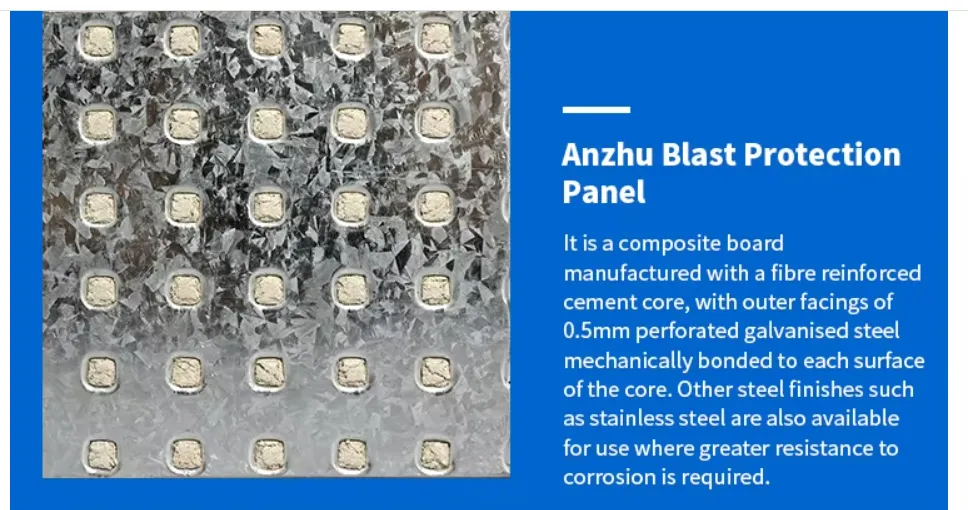

The core fiber cement composite steel plate is manufactured by high-pressure extrusion process, bonding two layers of 0.5 mm perforated galvanized steel sheets with an 8.5 mm thick fiber cement core layer.
The intermediate fiber cement layer provides excellent energy absorption performance, effectively improving the overall blast resistance and structural safety of the wall system.
Technical Specifications:
| Item | Specification |
|---|---|
| Product | Fiber Cement Explosion Proof Panel for Industrial Protection |
| Structure | Fiber cement + galvanized steel sheet |
| Thickness | 9.5mm |
| Size | 1200×2400mm |
| Fire Rating | A1 Non-combustible |
| Fire Resistance | Up to 4 hours |
| Application | Blast resistant wall system |
Explosion-proof walls are divided into non-insulated and insulated types. The insulated type has fiber cement composite steel plates on both the inner and outer sides of the metal frame, with rock wool filled in the middle of the frame. The fire resistance limit of the insulated explosion-proof wall can reach 4 hours. The steel keel of the explosion-proof wall uses cold-formed equal-leg channel steel. The size of the cold-formed equal-leg channel steel is determined by structural calculations based on the required explosion pressure value and the wall height.
Explosion-proof panels are easy and quick to install and can be disassembled and reassembled at any time. They are also used in high-rise buildings and industrial fire protection, such as chemical plants, oil refineries, and oil drilling platforms, as fireproof air ducts, fireproof ceiling partitions, fireproof doors, etc., providing a permanent solution.
Fireproof and explosion-proof panel characteristics
Strong, maintenance-free, space-saving, no foundation required, non-combustible and explosion-proof.
Suitable for on-site installation projects, easy to install, recyclable.

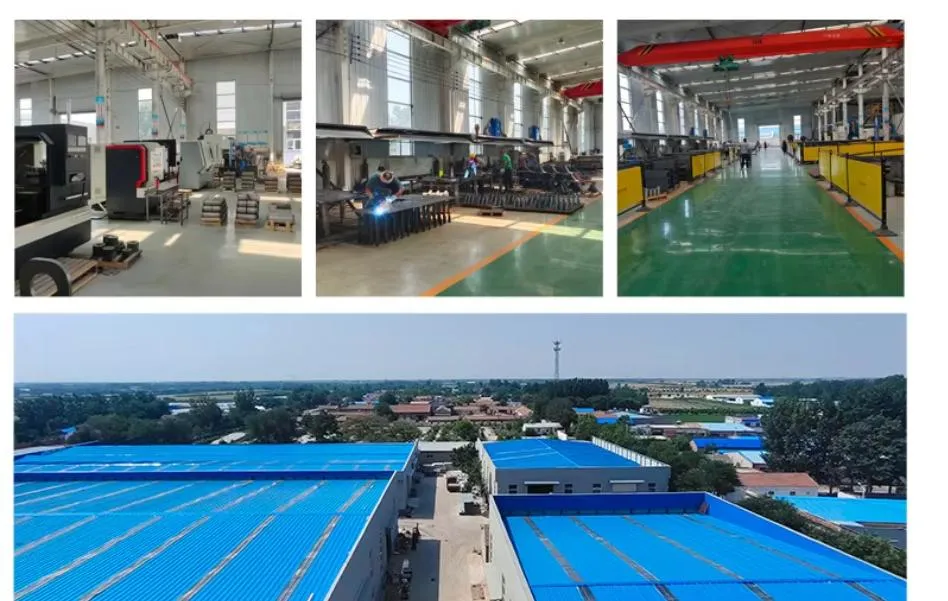

Our factory
FAQ
1.Are you a trader or manufacturer?
+
-
Yes We are manufacturer . we have ours factory with 5 million sqm one year
2.What is the deliver time?
+
-
About 10 working days after the advance payment received . fast shipping .
3.What is your payment methods?
+
-
T/T L/C D/P Paypal West Union and others.
Why choose us?
Quality is in the details!
Responsibility means paying attention to every detail! four core strengths give us a competitive edge. Choose us = Profit!
A powerful manufacturer with years of experience in explosion-proof and venting systems.
An enterprise integrating R&D, design, manufacturing, sales, and service.
We are customer-oriented in pre-sales, sales, and after-sales service.
A comprehensive product line meets the needs of every customer.
Quality is power. Rigorous craftsmanship ensures quality. From material selection, production, processing, factory inspection, installation, and maintenance, we undergo multiple rigorous quality control processes, meeting hygiene standards and tailored to specific project needs to minimize costs
