Essential details
Different automatic levels for your choice.
Adopting world famous brand Siemens PLC control system
High capacity of 4-8 million sm per year.
Raw materials: Gypsum board PVC film,Aluminum foil,glue
Effective laminating width Max 1300mm
Sheet thickness:5--30mm
Speed adjust way:frequency conversion synchronous speed regulating
Our fully automatic machine, powered by a Siemens PLC control system, delivers 4 to 8 million square meters of high-quality ceiling boards annually. Designed for versatility, it handles gypsum board, PVC film, and aluminum foil laminating – all in one compact, reliable system. With low labor requirements and energy-efficient operation, it's the smart choice for manufacturers aiming to scale production without compromising quality.

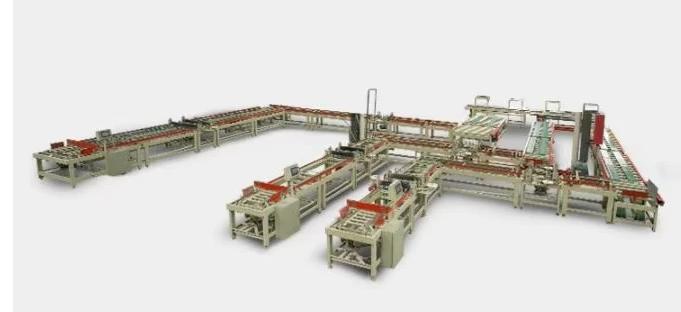

What Is Gypsum Ceiling Board Making Machine?
The PVC gypsum board laminating machine-also known as a glue-coating and drying laminator-is equipment designed to apply surface finishes to fire-resistant composite boards. Through this lamination process, boards are transformed into glossy or matte decorative panels suitable for use as ceiling materials.
The machine operates by automatically and continuously laminating the board surfaces. The typical workflow is as follows: the substrate undergoes dust removal and vacuuming before entering the glue-coating unit for uniform adhesive application; the adhesive is then dried to the optimal bonding state; the facing material is unrolled and applied to the board, passing sequentially through cold-pressing, hot-pressing, and re-pressing units to ensure a secure bond; finally, an automatic cutting mechanism severs the material, completing the lamination process. The entire operation is driven by a transmission system, enabling continuous, automated production.
Main parameters
|
Dimension |
32.5M(length)*13.5M(width)*4.5M(height) |
|
Maximum dimension of board |
2400mm*1250mm*15mm |
|
Maximum finished product packing size |
603mmX1210 mm |
|
Transmission power |
29.55KW |
|
Total power |
99.5 KW |
| Parameter | Specification |
|---|---|
| Control System | Siemens PLC, frequency conversion speed control |
| Annual Capacity | 4 – 8 million sqm |
| Max Laminating Width | 1300mm |
| Board Thickness Range | 5 – 30mm |
| Raw Materials | Gypsum board, PVC film, aluminum foil, adhesive |
| Automation Level | Fully automatic (coating → cutting → sealing → packing → stacking) |
| Core Components Warranty | 1 year (PLC, engine) |
| After-Sales Support | Video technical support, test reports provided |
Processing
Raw Material Feeding
↓
Glue Coating
↓
Film Laminating
↓
Edge Sealing
↓
Cutting
↓
Inspection
↓
Packing
PRODUCT LINE SPECIFICATION
This machine is designed for laminating PVC film onto the front surface and aluminum foil onto the back surface of gypsum boards, ensuring a bubble-free result.
Process Description:
Gypsum boards are placed onto a hydraulic lifting platform, raised, and then pushed onto the conveying shelf. From there, they are transported by rollers to the laminating unit.
In the first stage, PET adhesive is applied onto the glue-spreading rollers. As the rollers rotate, the adhesive is evenly coated onto the gypsum boards. The aluminum foil is then brought into contact with the boards, forming a firm bond.
The second stage applies the PVC film using the same process.
This is followed by flattening and bubble removal. Finally, the excess PVC film and aluminum foil are cut, and the boards are conveyed to the cutting machine.
Specifications:
Dimensions: 16.3 m × 3.1 m × 3.83 m
Transmission power: 14.35 kW
Total power: 15.45 kW
This machine is used to cut gypsum boards into smaller pieces. After being conveyed into the unit, the boards are first cut longitudinally and then transversely. Each standard gypsum board is divided into 8 pieces, suitable for use as ceiling panels.
Specifications:
Dimensions: 8.6 m × 2.355 m × 1.1 m
Transmission power: 2.95 kW
Total power: 22.95 kW
This machine performs four-edge sealing on the boards, which are fed individually. The process sequence is as follows:
Transverse edge sealing
Direction change (turning)
Longitudinal edge sealing
Stacking in groups of 8 or 10 pieces
Output conveying
Specifications:
Dimensions: 9.55 m × 6.7 m × 0.935 m
Transmission power: 4.79 kW
Total power: 4.79 kW
This machine is used for PE film shrink-wrapping after carton packing. Once the cartons are packed, they are conveyed into the shrinking tunnel. As they pass through the heated chamber, the PE film shrinks evenly around the cartons. After cooling, the cartons are transported to the stacking machine.
Specifications:
Dimensions: 10.9 m × 2.1 m × 1.66 m
Transmission power: 2.59 kW
Total power: 5.79 kW

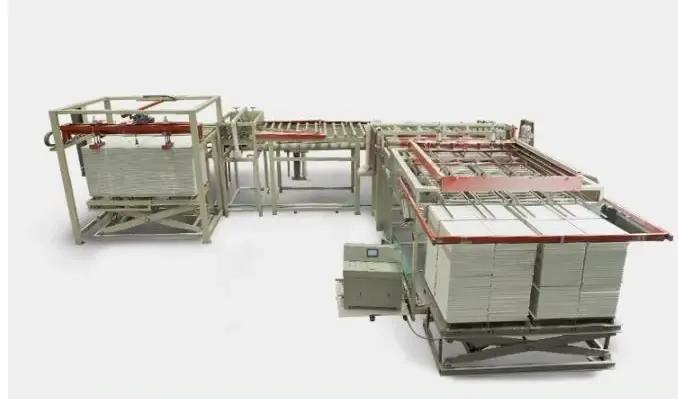

This machine is used for stacking finished products. The products are arranged neatly in stacks, with 4 units per group.
Main components: transmission unit, pushing device, stacking conveyor, and stacking mechanism.
Specifications:
Dimensions: 6.15 m × 3.14 m × 3.5 m
Transmission power: 0.37 kW
Total power: 3.32 kW
Product Specifications & After-Sales Support
| Type: | Laminating Machine, Full- Automatic | Applicable Industries: | Building Material Shops, Manufacturing Plant, Advertising Company |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine | Condition: | New |
| Warranty: | More than 5 years | Key Selling Points: | Fully automatic intelligent high efficiency save labor After-sales Service Provided:Video technical support |
Product application
General Commercial and Office Settings
Business Office Spaces: Suspended ceilings and partition walls for office buildings, corporate offices, and conference rooms, ensuring a neat and aesthetically pleasing work environment.
Commercial Venues: Retail stores, supermarkets, hotels, KTVs, restaurants, auditoriums, etc., balancing decorative appeal with durability.
Public Building Settings
Healthcare Facilities: Hospitals, operating rooms, nursing homes, patient wards, etc., meeting requirements for high cleanliness and ease of cleaning.
Educational and Public Spaces: Schools, kindergartens, theaters, waiting areas (airports/stations), government facilities, etc., complying with fire safety and noise reduction standards.
Specialized Functional Spaces: Laboratories, food processing areas, cleanrooms, etc., designed to inhibit bacterial growth and minimize dust accumulation.
Residential and Specialized Acoustic Settings
Residential Interiors: Suspended ceilings, partition walls, and wall paneling; suitable for quick, paint-free installation during renovations.
Acoustic Optimization Settings: Studios, recording rooms, home theaters, TV feature walls, etc., combining decorative aesthetics with sound-absorbing performance.
Quality & Support
Manufacturing experience : 10years+building machine manufacturer and export experience :
Export countries : middle east , south easy Asia, middle Asia, Russia, African etc.
Installation support : we provided machine installation on uyer site.
Engineering team : 5 years + professioanl installation team and long life techncial support .
Custom solutions : Based on different market requirements, Danae can customize production speed, board size, and automation level according to customer factory condition
FAQ
Q1 What is a gypsum ceiling board making machine?
This is used for producing ceiling gypsum board for decoration
Q2 What materials can this machine process?
Raw Material Feeding
↓
Glue Coating
↓
Film Laminating
↓
Edge Sealing
↓
Cutting
↓
Inspection
↓
Packing
Q3 What is the production capacity?
Capacity year about 2 million to 8 million sqm one year .
Q4 Can you customize the machine?
Yes , we can customize the machine based on customer required .
Q5 How long does installation take?
It will take 15-20 days about .
Q6 What after-sales service do you provide?
We provided longlife techncial support .
Q7 What is the Payment item ?
30% TT , 65% before delivery , 5% after installation .
